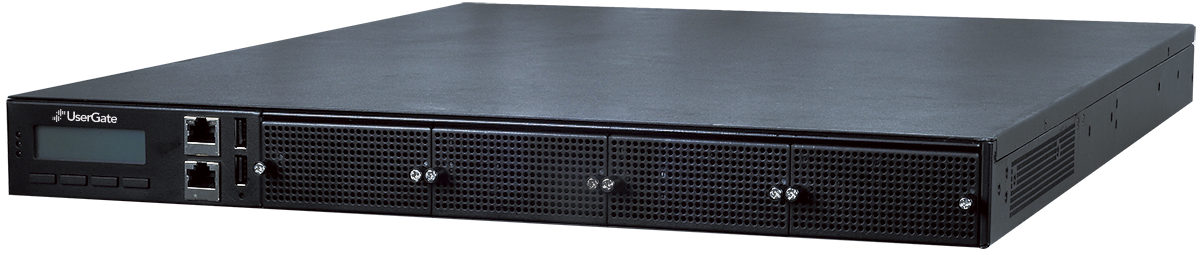

UserGate E1000, E3000

Corporate network security must be maintained through a high-performance platform that has a good safety factor and the potential for scaling up. UserGate E is a full-fledged network server solution capable of resolving security issues related to all types of online threats in networks with a thousand users or more.




Comprehensive Infrastructure Protection

For medium-sized and large business, it is extremely important to use security systems that are powerful and reliable. UserGate E is effective in protecting corporate networks against modern attacks and other intrusions and also provides traffic content analysis and filtering, web application monitoring, dangerous script and application blocking, defense against viruses and spam, and other security features.

Monitoring Users and Network Traffic

Medium-sized and large businesses must ensure both the security of their corporate infrastructure and compliance with corporate policies. UserGate E makes these features and others possible by providing everything you need to control and monitor the activity of corporate users and guests.

Specifications UserGate E1000 UserGate E3000
Firewall L3/L4 throughput, EMIX traffic up to 27 Gbps up to 40 Gbps
Firewall with L7 application control throughput, EMIX traffic up to 24 Gbps up to 32 Gbps
Concurrent TCP sessions up to 16 000 000 up to 16 000 000
Connections per second up to 100 000 up to 127 000
IDPS throughput, EMIX traffic up to 2,8 Gbps up to 3,9 Gbps
Content filtering throughput, EMIX traffic up to 13 Gbps up to 14,9 Gbps
SSL inspection throughput, EMIX traffic up to 5 Gbps up to 6,5 Gbps
Virus protection throughput, EMIX traffic* up to 12,4 Gbps up to 14,9 Gbps
Firewall with L7 application control, IDPS, content filtering throughput up to 2,8 Gbps up to 3,9 Gbps
Recommended number of users** up to 1000 up to 3000
Ports
10/100/1000Base-T

8 built-in ports

24 with expansion cards

8 built-in ports

24 with expansion cards

10GBase-F SFP+- Ports 12 with expansion cards 12 with expansion cards
RAM 32 GB 32 GB
HDD 2х1000 GB, RAID-1 2х1000 GB, RAID-1
Dimensions
1U
438 x 580 x 44 mm
17.24 x 22.83 x 1.73 inches
1U
438 x 580 x 44 mm
17.24 x 22.83 x 1.73 inches
Weight 16 kg 16 kg
Power 140-220 V 140-220 V
Power Consumption (Maximum) 300 W 300 W

*Advanced Threat Protection includes filtering by UserGate URL Filtering 3.0 categories, morphological content analysis, cloud antivirus, and ad blocking.

**The recommended number of users is determined based on the average employee profile. This value can vary widely depending on the kind of work performed by company employees and the logging settings on the UserGate server.

Functions UserGate E1000, E3000
Next Generation Firewall (NGFW)
Intrusion Detection and Prevention System (IDPS)
Advanced Threat Protection (ATP)*
(Optional)
Application control (L7)
Stream virus check
(Optional)
Mail security**
(Optional)
Internet access control
SSL Decryption
Remote administration
Bring Your Own Device (BYOD) concept support
High Availability and clustering

* Advanced Threat Protection includes filtering by UserGate URL Filtering 3.0 categories, morphological content analysis, cloud antivirus, and ad blocking.

** Mail Security includes cloud antispam, email antivirus, and support for methods of filtering unwanted email.
