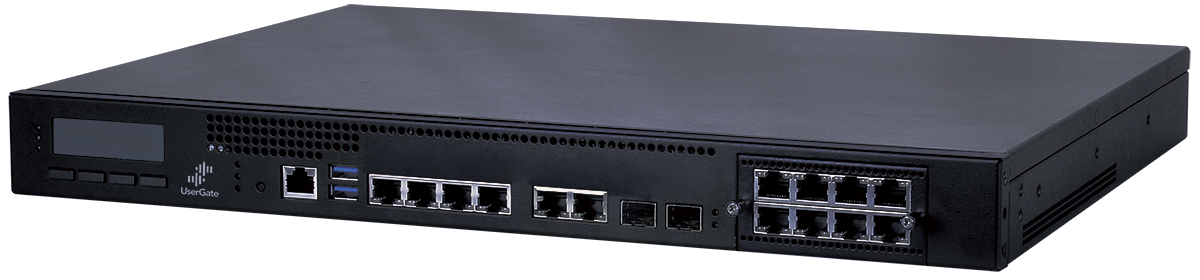

UserGate D200, D500

To protect corporate networks, you need a multifunctional solution that can provide comprehensive security for network infrastructure without negatively impacting access speeds. The UserGate D appliance is a full-fledged network server capable of securing small and medium-sized businesses with several hundred users.




Threat Protection

Every network infrastructure is exposed to outside dangers, especially when connected to the Internet. UserGate D provides reliable protection against modern attacks, traffic content analysis and filtering, web application monitoring, dangerous script and application blocking, defense against viruses and spam, and other security features.

Monitoring Users and Network Traffic

Corporate networks cannot be secured without adequate monitoring of user activity. The importance of this monitoring depends directly on the size of the network. UserGate D ensures compliance with corporate user group policies, protects guest Wi-Fi, and monitors personal devices like smartphones and tablets with its BYOD (Bring Your Own Device) support.

Specifications UserGate D200 UserGate D500
Firewall L3/L4 throughput, EMIX traffic up to 18 Gbps up to 20 Gpbs
Firewall with L7 application control throughput, EMIX traffic up to 15 Gbps up to 18,7 Gbps
Concurrent TCP sessions up to 8 000 000 up to 16 000 000
Connections per second up to 50 000 up to 75 000
IDPS throughput, EMIX traffic up to 1,8 Gbps up to 2 Gbps
Content filtering throughput, EMIX traffic up to 8,7 Gbps up to 9,6 Gbps
SSL inspection throughput, EMIX traffic up to 4 Gbps up to 4,4 Gbps
Virus protection throughput, EMIX traffic* up to 7,9 Gbps up to 8 Gbps
Firewall with L7 application control, IDPS, content filtering throughput up to 1,8 Gbps up to 2 Gbps
Recommended Number of Users** up to 300 up to 500
Ports
10/100/1000 Base-T
5 with expansion cards;
2 SFP
8 with expansion cards
5 with expansion cards;
2 SFP
8 with expansion cards
10GBase-F SFP+- Ports 4 with expansion cards 4 with expansion cards
RAM 16 GB 32 GB
HDD 1х1000 1х1000
Dimensions
1U
438 x 321 x 44 mm
17.24 x 12.63 x 1.73 inches
1U
438 x 321 x 44 mm
17.24 x 12,63 x 1.73 inches
Weight 7.5 kg (16.5 lbs) 7.5 kg (16.5 lbs)
Power 140-220 V 140-220 V
Power Consumption (Maximum) 220 W 220 W

* Advanced Threat Protection includes filtering by UserGate URL Filtering 3.0 categories, morphological content analysis, cloud antivirus, and ad blocking.

** The recommended number of users is determined based on the average employee profile. This value can vary widely depending on the kind of work performed by company employees and the logging settings on the UserGate server.

Functions UserGate D200, D500
Next Generation Firewall (NGFW)
Intrusion Detection and Prevention System (IDPS)
Advanced Threat Protection (ATP)*
(Optional)
Application Control (L7)
Heuristic Antivirus
(Optinal)
Mail Security**
(Optional)
Internet Access Control
SSL Decryption
Remote Administration
Bring Your Own Device (BYOD) Concept Support
(Bring Your Own Device)
High Availability and Clustering

* Advanced Threat Protection includes filtering by UserGate URL Filtering 3.0 categories, morphological content analysis, cloud antivirus, and ad blocking.

** Mail Security includes cloud antispam, email antivirus, and support for methods of filtering unwanted email.
