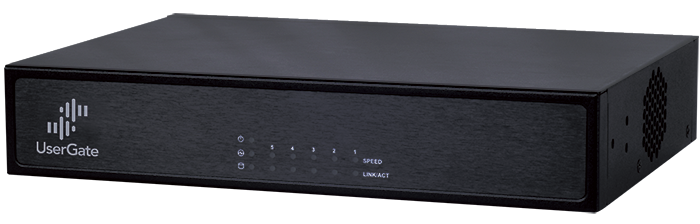

UserGate C100

Networks of all sizes should be protected from external attacks and viruses, as well as a wide range of other modern cyber threats. UserGate is a compact and straightforward network device for small organizations and branch offices, equally suited to safeguarding networks of a few dozen users to those of a hundred or more.


Affordable and User-Friendly

UserGate C100 is available for the lowest possible price to fit the budgets of small organizations and branch offices, such as sales outlets. Any systems administrator can set up our device, which comes practically ready to use. UserGate C100 can be used on networks with a channel bandwidth of up to 2 Gbps.

Comprehensive Security

Despite the small size and low cost of UserGate C, the device is based on the same technology that protects the networks of large companies. It provides not only basic firewall functionality, but also protection from modern attacks, traffic content analysis and filtering, web application monitoring, dangerous script and application blocking, defense against viruses and spam, and other security features. In addition, UserGate C can protect guest Wi-Fi and monitor personal devices like smartphones and tablets with its BYOD (Bring Your Own Device) support.

UserGate C100


Firewall throughput, UDP: up to 2 Gbps

Firewall throughput, EMIX traffic: up to 2 Gbps

Firewall with L7 application control throughput, EMIX traffic: up to 1,9 Gbps

Concurrent TCP sessions: up to 2 000 000

Connections per second: up to 10 400

IDPS throughput, EMIX traffic: up to 300 Mbps

Content filtering throughput, EMIX traffic: up to 800 Mbps

SSL inspection throughput, EMIX traffic: up to 300 Mbps

Content filtering, antimalware throughput, EMIX traffic: up to 700 Mbps

Firewall with L7 application control, IDPS, content filtering, EMIX traffic: up to 300 Mbps

Size of Organization

Recommended number of users*: up to 100

Equipment Specifications

Ports: 5 with expansion cards

Processor, number of cores: 4


HDD: 1х500


Dimensions: tabletop 230 x 170 x 47.7 mm (9.05 x 6.69 x 1.87 inches)

Weight: 1.2 kg

Power Supply

Power: 140-220 V

Power consumption (max): 36 W

* The recommended number of users is determined based on the average employee profile. This value can vary widely depending on the kind of work performed by company employees and the logging settings on the UserGate server.

Next-generation firewall

Intrusion Detection and Prevention System (IDS/IPS)

Advanced threat protection (option)

Stream-based antivirus (option)

 Access to internal resources over SSL VPN Portal

 Internet gateway to control Internet access

Security incidents info analysis and download (SIEM)

Reverse proxy

 Automated response to cybersecurity threats (SOAR)

Application control L7 (option)

 Mail security (option)

 Internet access control

SSL decryption

 Guest Internet hotspot

User identification

Virtual Private Network (VPN)

Remote administration

 Safe publishing of internal resources and services

Bring Your Own Device (BYOD) concept support

High availibilty and clustering support

SCADA support
